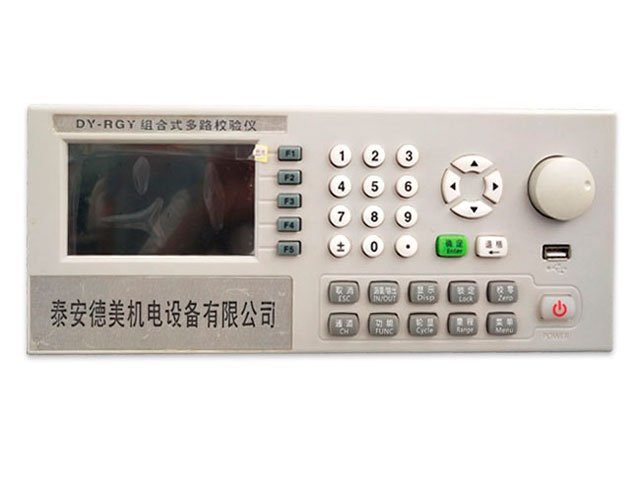

DY-RGY Combined Multi-channel Calibrator

◇ Product Introduction ◇ Product Features◇ Technical Indicator

[Product Introduction]

DY-RGY combination multi - way calibrator is an open, innovative bench calibrator. It adopts 1 host + signal sampling model (up to 8 channels) working mode, each channel signal is completely isolated, can be used at the same time. Effectively realize the customer on demand selection, avoid waste and at any time the function of expansion, can greatly meet the needs of customers.

A variety of communication methods (support RS232, LAN, USB, GPIB) can meet the needs of different applications of customers. The invention of this product effectively solves the problems of fixed function and big limitation of calibration instruments on the market at present. Users can choose different signal modules according to their own needs, and can freely combine a product that meets the practical application.

[DY-RGY host characteristics]

1. Screen: 4.3 -inch color screen (480 * 272 resolution).

2. Support single and double screen, screen and four eight screen display, can take turns to show by manual or automatic way.

3. The number of signal module support: 8 road, signal board can work simultaneously and isolated.

4. The display mode: single, 2, 4, 8, optional, support cycle (time interval can be set).

5. Output way: support to type at the same time, the cursor shift and knob to adjust three forms.

6. Support % shows; Support graphic display of historical data; Support upper limit, lower limit and average value display; Support for measurement locking.

7. Friendly human-computer interaction interface, convenient operation; The host software can be upgraded by the customer.

8. Communication mode: standard RS232, LAN, USB, optional configuration GPIB communication protocol provided free of charge.

9. Power supply: 220 v AC + / - 10%, 50 hz, optional 100/110 v AC + / - 10% (ordering).

10. The power consumption of the host: single 5 w, when use USB function of 10 w.

[Thermocouple, Thermal Resistance Type, Accuracy Table]

Customized services:

1. Provide customization of special signal modules;

2. Module pin definition can be provided for users to develop signal modules by themselves;

3. Redefine the panel keys or display interface according to customer needs;

4. Develop upper management software or multi-machine logic conditioning function according to customer needs.
